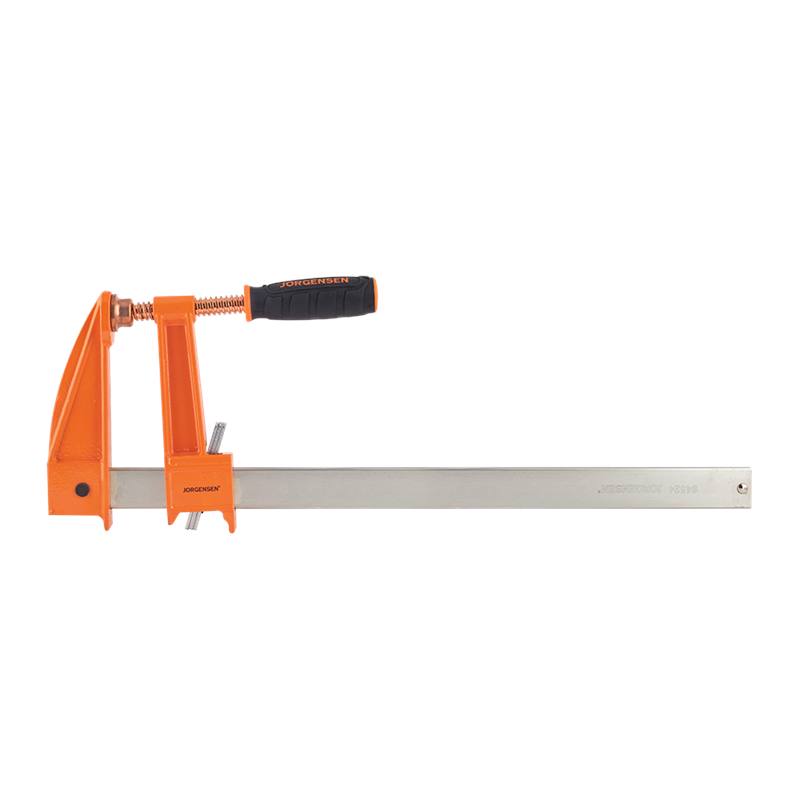

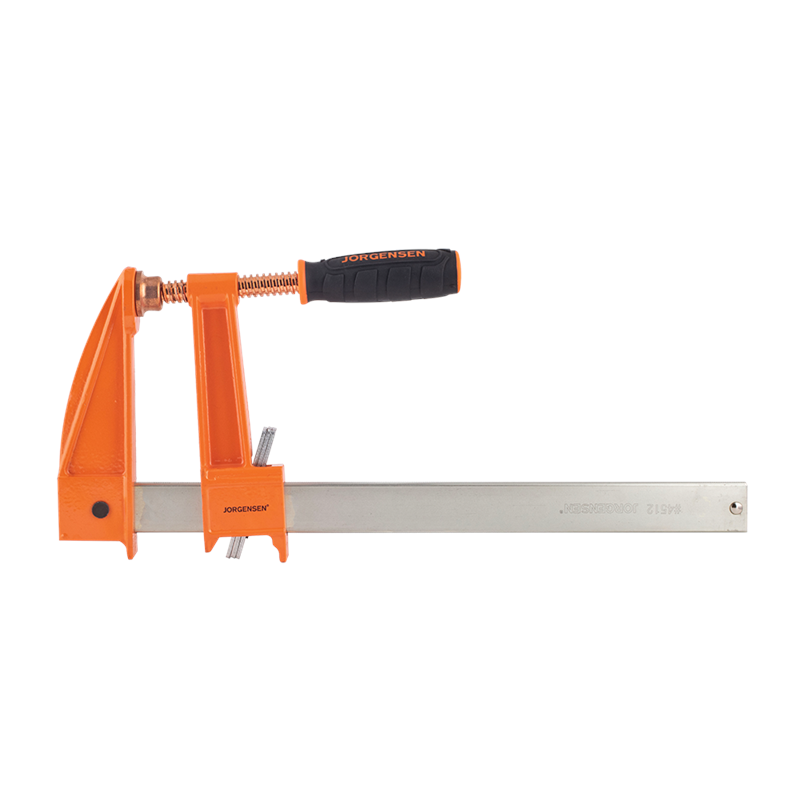

JORGENSEN 900mm Deep-Reach Throat Bar Clamp

When your project calls for a deeper hold, reach for Jorgensen deep throat steel bar F-clamps. They contain all the same high quality materials as our traditional steel bar clamps but with five-inch reach. Cast iron stationary and sliding heads with an orange, powder coated finish are merged with a high carbon, rust resistant steel bar that packs a whopping 80,000 pounds per square inch of tensile strength. Welders take note: the copper plated screws, handles, and swivels help protect against weld spatter in welding jobs. The clamps are equipped with a soft grip handle for added comfort. Furthermore, our innovative multiple-disc-clutch design enables the sliding head to securely hold at any desired position along the bar.

Features:

• Five-inch deeper reach.
• The stationary and sliding heads are made of cast iron.
• Orange, powder-coated finish, providing a protective and attractive coating.
• Features a high-carbon, rust-resistant steel bar for long-lasting performance.
• Welding Protection: Copper-plated screws, handles, and swivels protect against weld spatter in welding jobs.
• Soft Grip Handle.
• Multi-disc-clutch design enables secure holding at any desired position along the bar.

Specifications:

• Max Opening: 914mm (36")
• Reach: 127mm (5")
• Clamping Force: 544kg (1200lb)
• Bar: 35mm (1 3/8") x 8mm (5/16")
• Weight: 4225g
