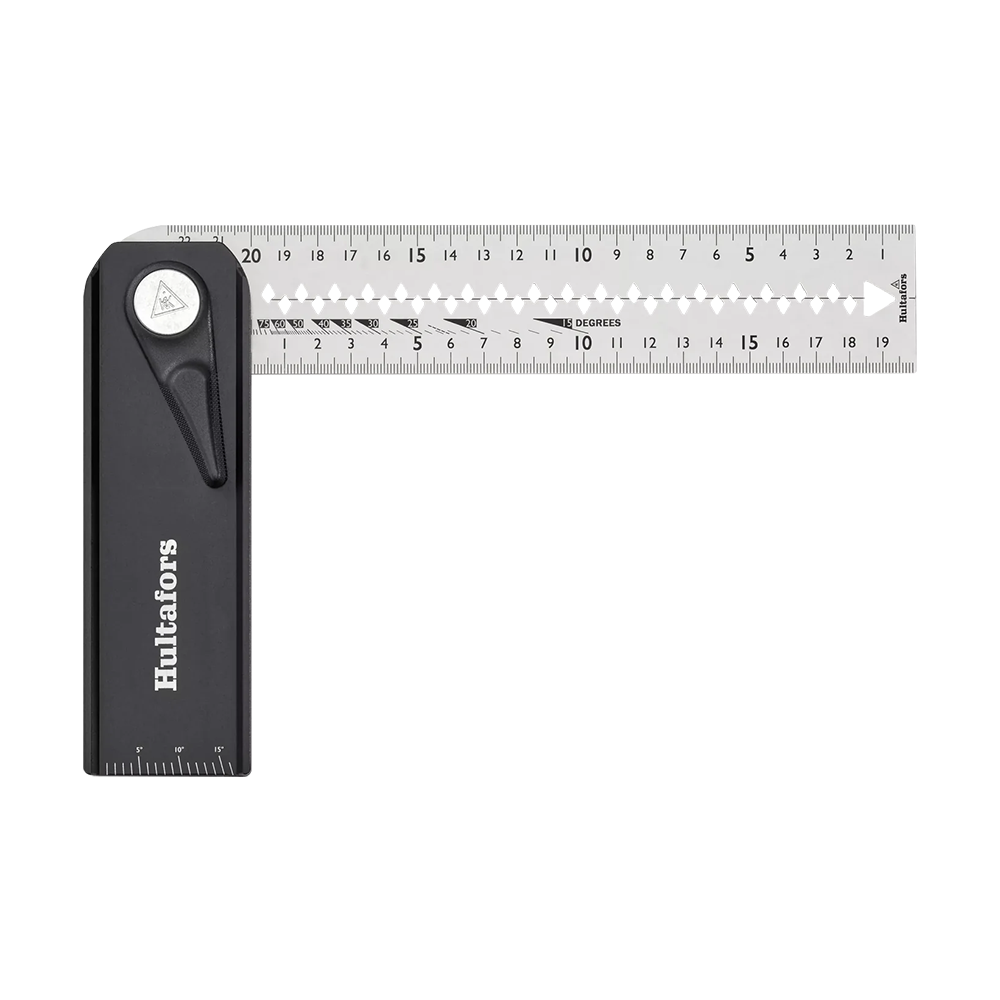

HULTAFORS 250mm Quattro Bevel Square

SKU: HU256023

Barcode: 7317842560238

This innovative adjustable square functions as a bevel square and angle finder in one. The 250mm stainless steel blade rotates to fixed positions at 45°, 90°, 135°, 180°, 225° and 270°, and can be locked at any angle between 0° and 270° using the lever. Both blade and handle feature angle scales from 0° to 90°. The 45mm-wide blade suits standard studs, with a centre line for fast marking and 5mm-spaced scribing notches for parallel lines. Fully foldable for pocket storage, the tool features a CNC-milled stock, laser-cut blade, and ±0.06° angle tolerance—designed for accuracy, durability and demanding site conditions.

Features:

• Adjustable with fixed positions for 45°, 90°, 135° (180°, 225° and 270°).
• Can be used as a lockable bevel square.
• Laser etched millimeter graduation with very high contrast and abrasion resistance.
• The stock is made of fully anodized aluminum.
• Angle scale on both blade and handle (0°–90°).
• Fully foldable for easy storage.

Specifications:

• Blade Length: 250mm
• Blade Width: 45mm
• Blade Thickness: 1mm
• Handle Thickness: 19mm
• Fixed Positions: 45°, 90°, 135°, 180°, 225°, 270°
• Angle Scale: 0°–90°
• Blade Material: Stainless Steel
• Handle Material: Aluminium
• Graduations: mm
• Accuracy: ±0.06° (±1 mm/m)
