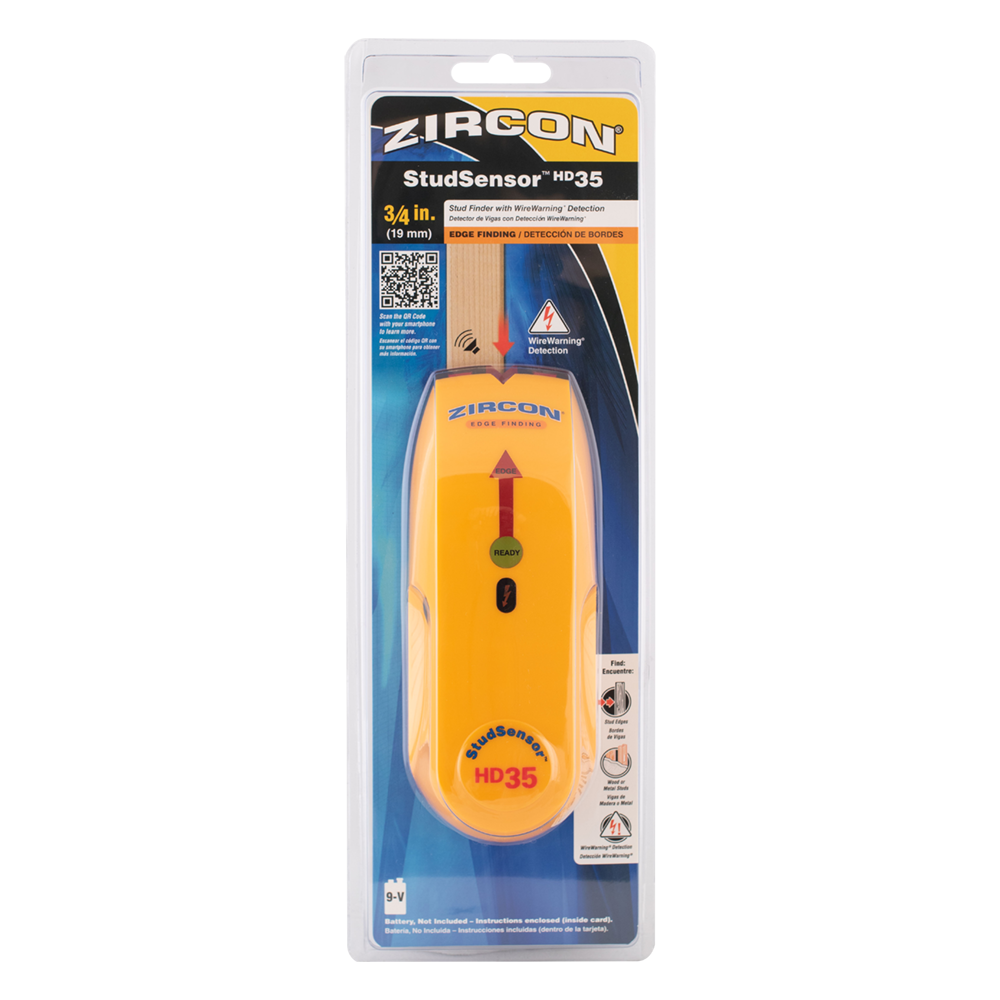

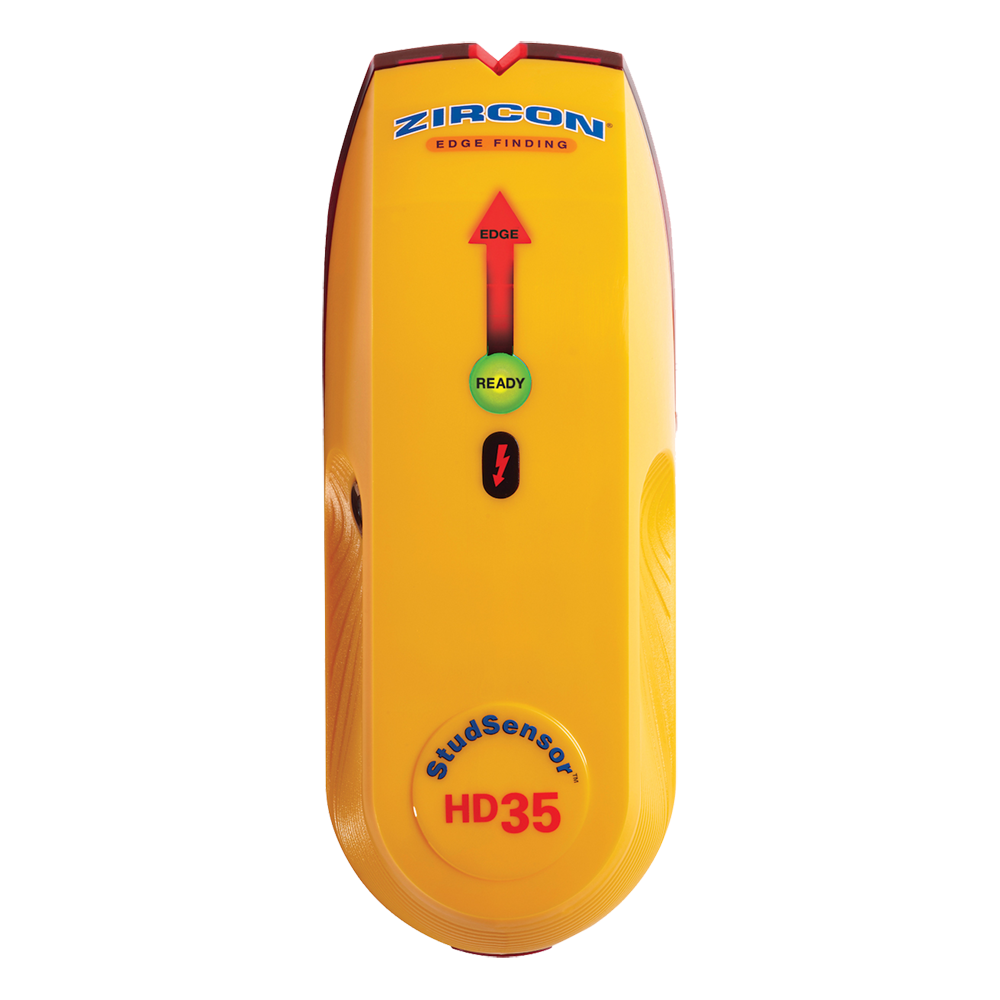

ZIRCON StudSensor™ HD35

Stud Finder with SpotLite® Pointer and WireWarning® Detection

The StudSensor™ HD35 stud finder features the latest design innovation by Zircon. Designed with a bright, easy-to-understand interface and a wide, contoured grip for comfort and ease of use, it provides optimized visibility and a secure hold at any angle. Find the edges of wood and metal studs to securely anchor pictures, mirrors, and shelves to the wall while also avoiding live AC electrical wiring.

Features:

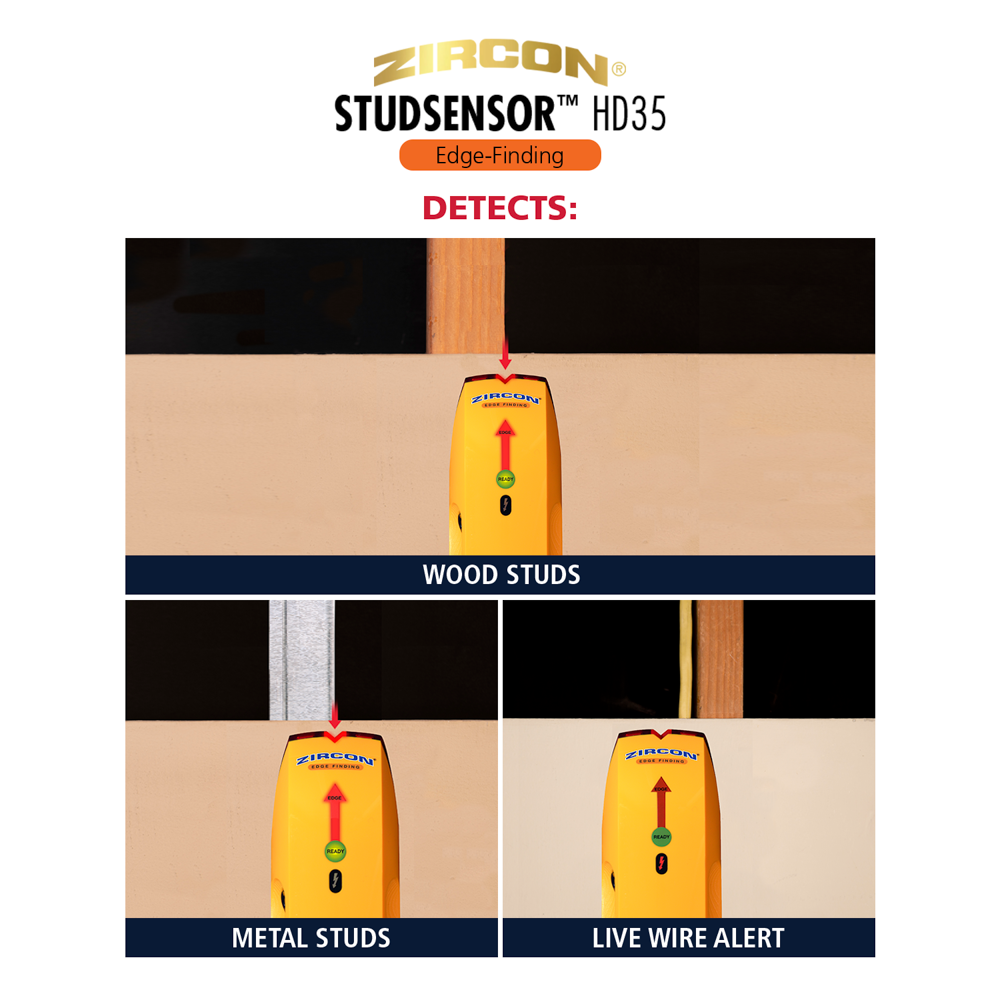

• StudScan mode locates the edges of wood or metal studs up to ¾ in. (19 mm) deep
• READY light indicates when calibration is complete and tool is ready for use
• EDGE arrow lights up sequentially as you approach a stud and fully illuminates when you have found the stud edge
• Zircon’s patented “over-the-stud” indication alerts you to start the scan in a new location as scanning began over a stud
• WireWarning® detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Translucent base and illuminated “V” marker groove for more accurate marking of stud edge location.

Specifications:

• Dimensions: 155mm x 60mm x 33mm
• Weight: 91g (without battery)
• Battery Type: 9V alkaline, required
• Depth: ¾ inch (19 mm) deep
• Position Accuracy: Wood studs within 3mm and metal studs within 13mm using the dual scan and mark procedure
• WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
• Operating Temperature: -7° to 41°C
• Storage Temperature: -29° to 66°C
• Humidity: 5 - 90% RH (non-condensing)
• Water Resistance: Splash and water resistant, not waterproof
