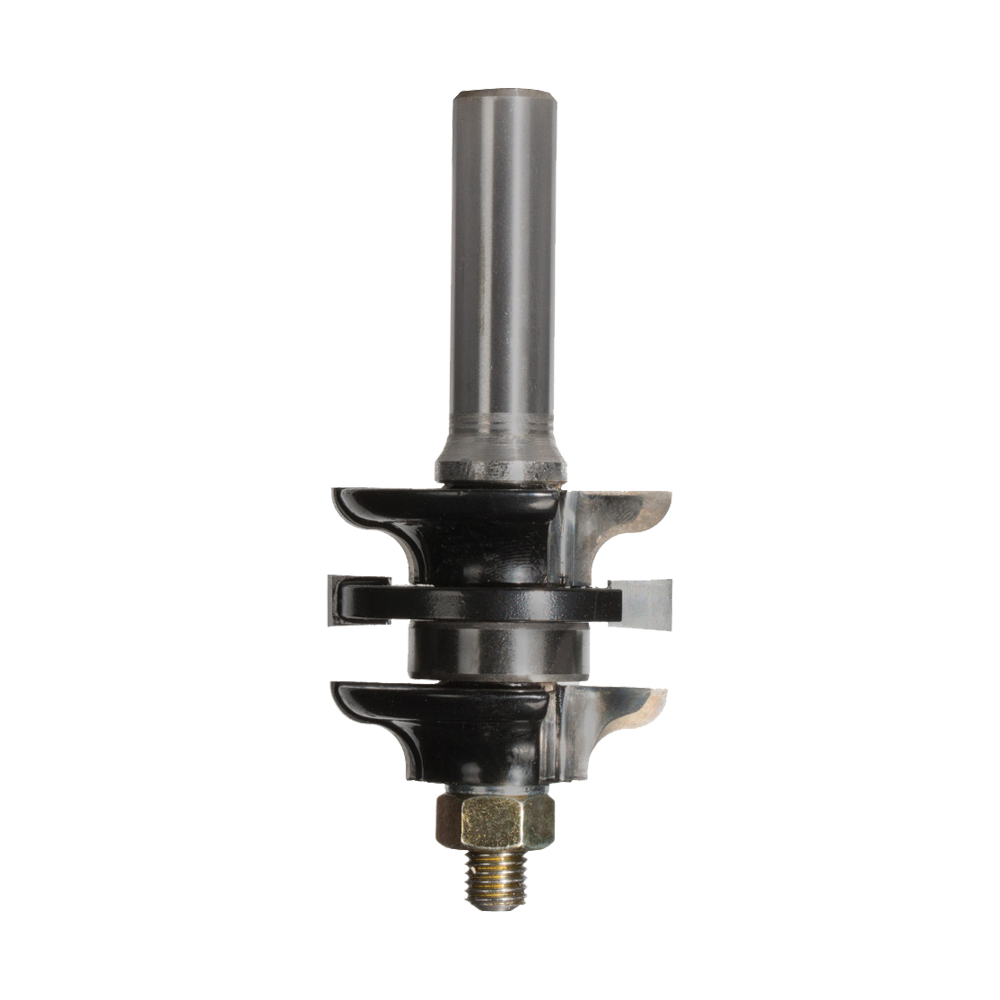

CARBITOOL Straight Stacked Stile and Rail Assembly with Ball Bearing Guide - 2 Flute - Carbide Tipped (40mm x 50mm)

SKU: 6TPDS13B-12

Barcode: 9314657006591

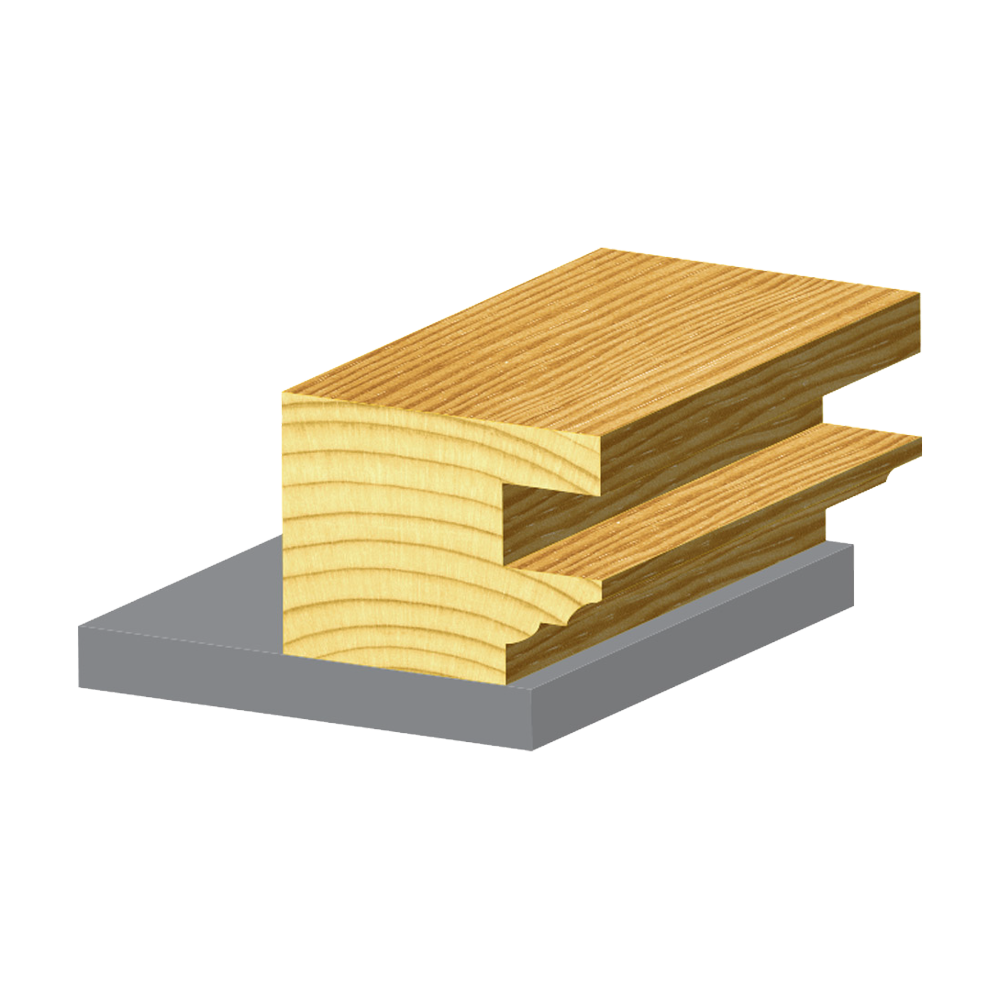

  • Now you can machine stile and rail with just one bit without having to adjust and switch, reverse or remove the bit from your router
  • Designed for use in your router table, this bit will machine 16mm to 20mm material
  • Ball bearing guide allows odd shapes such as arches or cathedral pattern doors
  • Assembly feature allows any cutter to be removed for economical repair, sharpening or replacement
  • Also makes glass door and tongue and groove joins


  • Cutting Width (A): 40mm
  • Flute Length (B): 50mm
  • Overall Length (C): 97mm
  • Shank: 1/2" (12.7mm)
