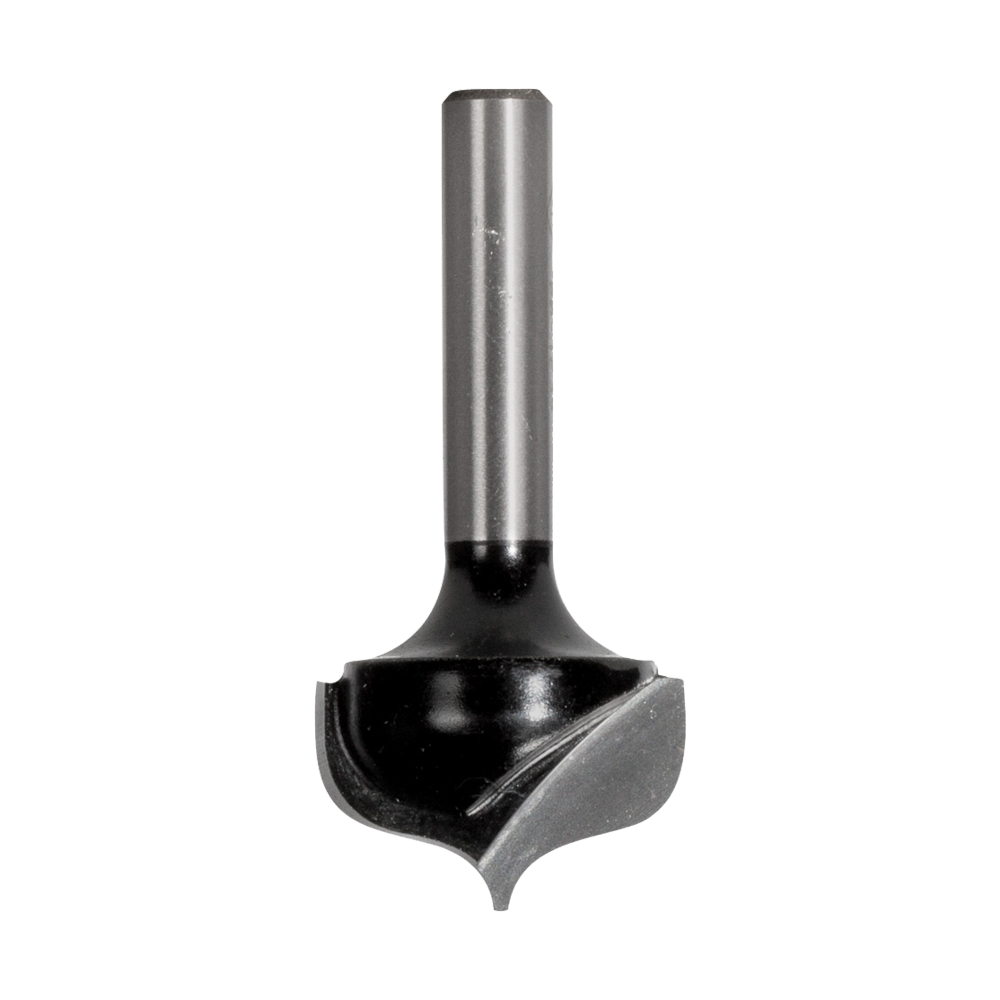

CARBITOOL Ogee Bit Fine Point - 2 Flute - Carbide Tipped (26.4mm x R6.35mm)

SKU: 6TF7509

Barcode: 9314657005549

Features:

• For Ogee grooves where a fine point is required
• Used extensively in router lathe work for forming barley twist patterns
• Use with template or guide for face forming

Specifications:

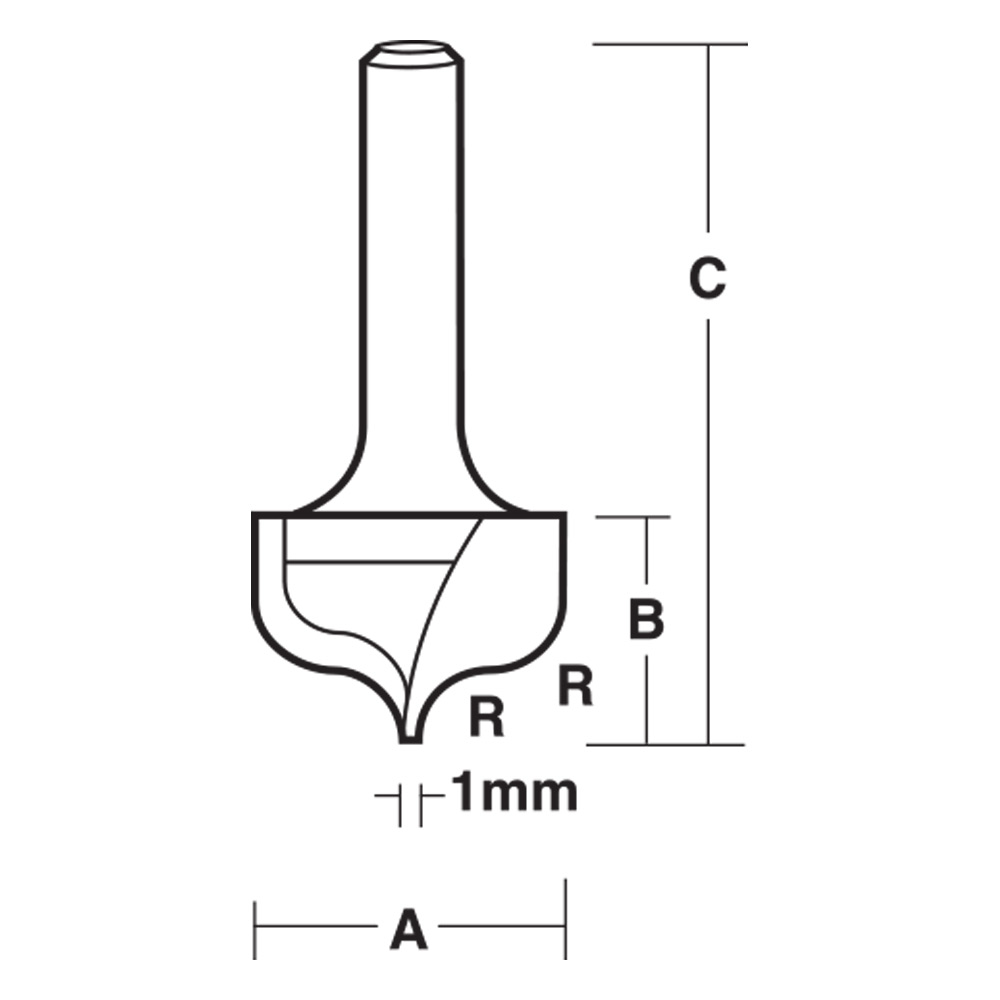

• Cutting Width (A): 26.4mm (1.04")
• Flute Length (B): 15.9mm (5/8")
• Overall Length (C): 47mm (1-7/8")
• Shank: 1/4" (6.35mm)
• Radius (R): 6.35mm (1/4")
